Magic-ray double-sided inline AOI inspects the top and bottom of a PCBA simultaneously — replacing two single-sided machines, cutting floor space and operator load, and catching wave-soldering and THT defects that one-sided systems miss. Available as 2D or full 3D.
Both systems do the same core job — simultaneous double-sided inspection after wave soldering and for final QA. The difference is how deep they see. The V5300 is a proven 2D workhorse for high-throughput defect coverage at a lower investment. The VS7300 adds true 3D reconstruction with a 35 mm height range for demanding THT and odd-form measurement.
Dual-camera simultaneous top & bottom inspection with Magic-ray's proprietary solder-pad & FOV positioning and a dedicated CPU-pin algorithm for bent, deformed and missing pins.
High-volume wave-soldering & final inspection where 2D coverage and a leaner investment matter most.

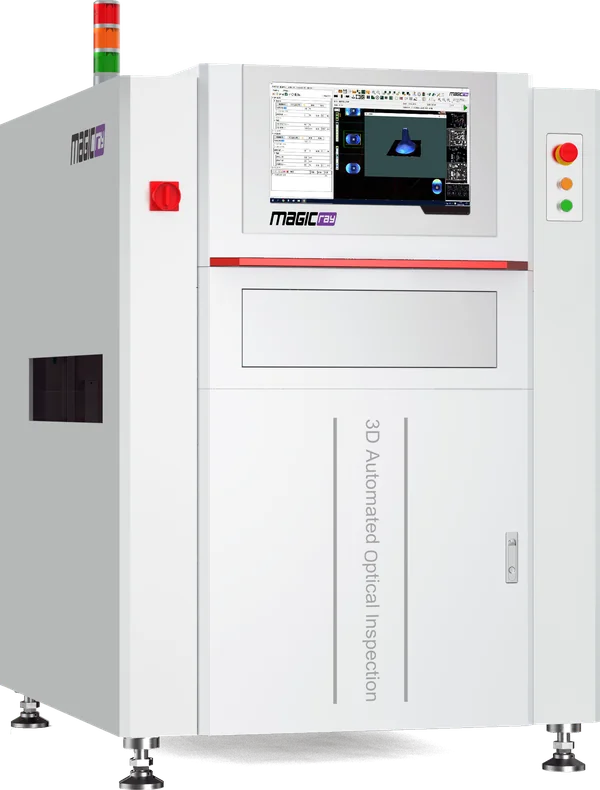

A new-generation optical system reconstructs realistic 3D images of both sides at once, with dual-sided Z-axes and an ultra-high range built for wave-soldering THT height measurement.
THT floating-height, tall odd-form parts and high-mix lines needing true 3D measurement and the lowest false-call rate.
The same double-sided mission, two depths of inspection. Here's how they line up.
| Specification | V5300 · 2D | VS7300 · 3D |
|---|---|---|
| Inspection type | Double-sided 2D AOI | Double-sided 3D AOI |
| Camera | 5MP / 12MP | 12MP / 21MP |
| Resolution | 24µm (5MP) · 15µm (12MP) | 15µm (12MP) · 10µm (21MP) |
| Height measurement | — | Structured grating ×4 each side, up to 35 mm |
| X/Y movement | AC Servo (Dual Drive on XL) | Dual AC Servo Drive |
| Transport | Belt (roller pulley optional) | Belt |
| Max PCB weight | ≤10 kg (≤30 kg roller pulley) | ≤8 kg |
| Component clearance | Top 25–85 mm / Bottom 25–80 mm | Top 30–65 mm / Bottom 30–50 mm |
| Inspection speed | 200–250 ms/FOV | 450–550 ms/FOV |
| Key strength | Fast, cost-efficient 2D coverage | True 3D height & THT floating-height |
Tell us about your boards, throughput and defect priorities — we'll help you choose between the V5300 and VS7300, and arrange a demo in the US.
