⚡ Magic-ray · SMT Inline 3D AOI
Cube Series · Models: Cube+ / Cube-D+

Cube Series 3D AOI System

High-speed, high-precision inline 3D automated optical inspection (AOI) machine for SMT pre-reflow and post-reflow inspection. Multi-fringe projection eliminates shadow blind spots and captures true 3D component and solder joint shapes — with a 35mm measurement range for tall parts.

3D + AI + color feature algorithms
Up to 35mm 3D measurement range
12MP industrial camera
450ms / FOV inspection speed
Black-on-black board detection
Single & dual lane configurations

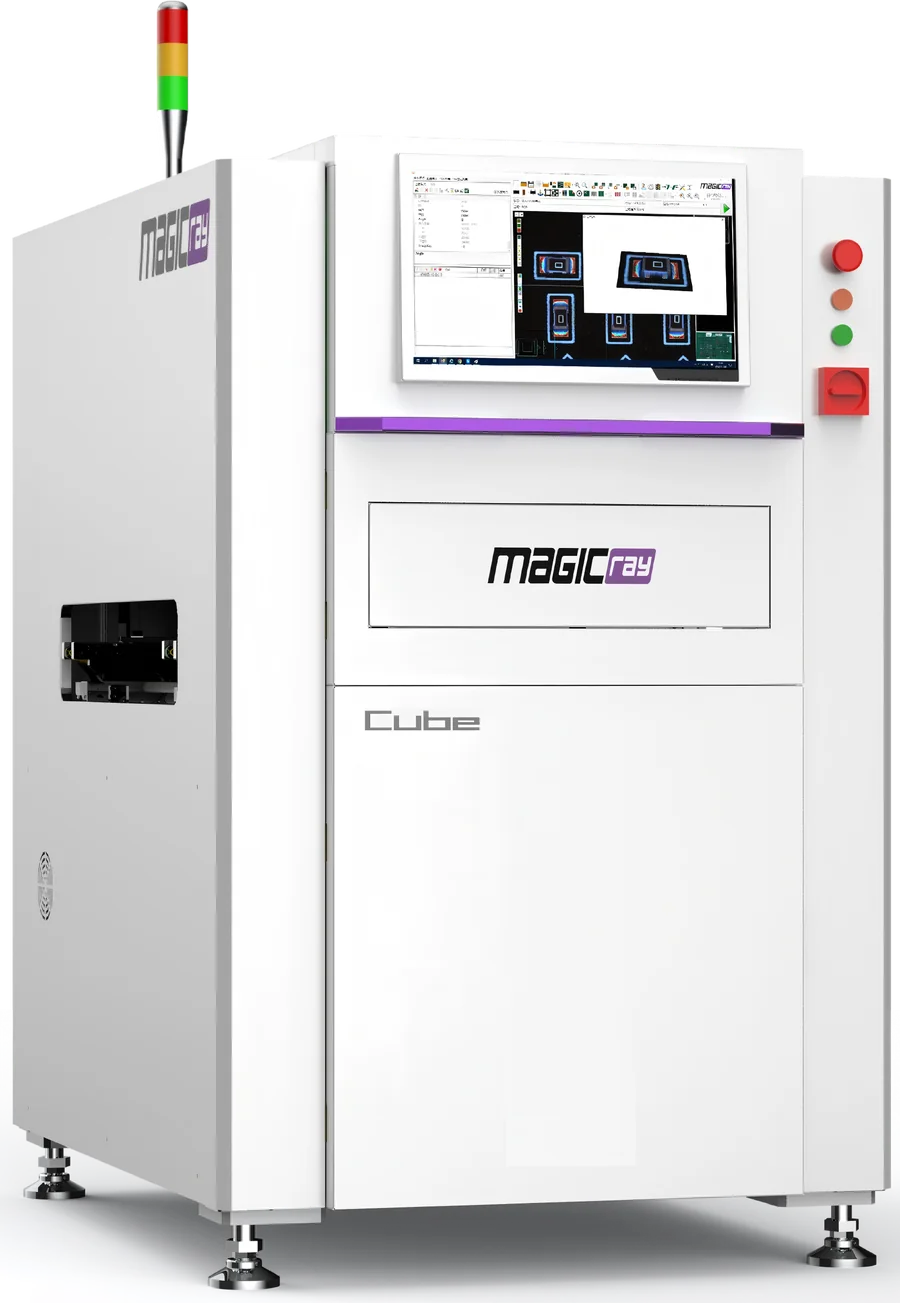

Magic-ray Cube Series 3D AOI

What a 3D AOI system checks on your SMT line

An automated optical inspection (AOI) system images every assembled board and checks each component and solder joint against the inspection program. Cube runs inline — after the mounter as pre-reflow AOI, after the reflow oven as post-reflow AOI, or at both points.

2D AOI evaluates a flat image. 3D AOI also measures height: four projectors build a 3D profile of each component and joint, so lifted leads, floating parts and coplanarity are measured directly — including tall parts up to 35mm and low-contrast black-on-black boards.

Cube checks placement and solder joints. Icon 3D SPI checks the solder paste before components are placed.

Component defects

  • Missing
  • Wrong component
  • Polarity
  • Shift
  • Reverse
  • Damage
  • Tombstone
  • Float
  • Coplanarity
  • IC lead bend
  • IC lifted lead
  • Foreign material

Solder joint defects

  • No solder
  • Insufficient solder
  • Excess solder
  • Open solder
  • Solder bridge
  • Solder ball

Chip components from 03015 (3D), LSI from 0.3mm pitch, odd-shape components. Full list in the specifications below.

High-efficiency, easy-programming 3D AOI

The Cube Series boasts cutting-edge positioning technology and advanced feature-analysis algorithms, ideal for high-speed, high-precision inspection of SMT components in both pre-reflow and post-reflow processes.

01 / Algorithm

Rich 3D + AI + color algorithms

The combination of 3D, AI, and color-feature algorithms optimizes defect detection rate while minimizing false calls.

02 / Positioning

Multiple positioning methods

Precisely locates components and intelligently compensates for board warpage — detects defects on black components on black boards.

03 / Adaptability

Adapts to different color PCBs

Effectively detects both black and white boards by automatically adjusting inspection parameters.

04 / Speed

Marble platform + dual-drive

Marble platform, dual-drive, and a dedicated motion control card support an inspection speed of 450ms per FOV.

05 / Range

Ultra-high range 3D reconstruction

Capable of measuring components up to 35mm in height — handles tall connectors, electrolytic capacitors, and odd-form parts.

06 / Process control

Three-point check + SPC

The powerful combination of three-point-check software and SPC data analysis quickly identifies the root cause of defects.

Core technology & advantages

Magic-ray's 3D AOI uses phase-shift projection: an accurate profile of every component and solder joint is reconstructed from height and color data.

A / Zero reference

Intelligent Zero Reference Point

Automatically generates a reference point, ignoring PCB color change and board interference, making height measurement more accurate.

B / Coplanarity

Intelligent Coplanarity Inspection

Combining intelligent coplanarity inspection with absolute height eliminates false calls caused by a component's height variation.

C / Positioning

3D Positioning Technology

Removes interference from silkscreens or changing colors of PCB backgrounds and components for reliable positioning.

D / Algorithm

3D + Color Algorithm

Optimizes height and color information to reconstruct the various shapes of components and solder joints in all directions.

E / Range

Ultra-high Range Reconstruction

Measures components up to 35mm tall with high-range 3D reconstruction technology.

F / Integration

iFactory Solutions & MES

Real-time remote monitoring and centralized management for multiple lines. Automatic program switching via barcode, with MES command support.

Specifications

Cube Series is available in two configurations: Cube+ (single-line) and Cube-D+ (dual-lane).

SpecificationCube+Cube-D+
Image System
Camera12MP industrial camera
Resolution15µm, 12µm, 10µm
FOV60 × 45mm (12MP, 15µm)
Lighting4-color ring-shape LED (RGBW)
Height measurement4-way projectors
Movement Structure
X/Y movementAC Servo (dual drive)
PlatformGranite
Width adjustmentAutomatic
Transport typeBelt
Board loading directionLeft → right or right → left (select at point of order)
Fixed railSingle lane: 1st fixed rail · Dual lane: 1st rail (1st & 3rd, or 1st & 4th fixed rail)
Hardware Configuration
Operating systemWindows 11
CommunicationEthernet, SMEMA
Power requirementSingle phase 220V, 50/60Hz, 5A
Air requirement0.4–0.6 MPa
Conveyor height900 ± 20mm
Equipment dimensionsL1140 × D1360 × H1620mm (without tower light)
Equipment weight1100 kg1150 kg
PCB Handling
PCB size50 × 60 – 510 × 510mmDual lane: 50 × 60 – 510 × 320mm
Single lane: 50 × 60 – 510 × 560mm
Thickness≤ 6.0mm
Warping± 3.0mm
Component clearanceTop 25–50mm adjustable · Bottom 45mm
Clamping edge3.0mm
PCB weight≤ 3.0 kg
Inspection Categories
Component defectsWrong component, missing, polarity, shift, reverse, damage, IC lead bend, IC lifted lead, foreign material, float, coplanarity, tombstone, etc.
Solder joint defectsNo solder, insufficient solder, open solder, excess solder, solder bridge, solder ball, etc.
Component sizeChip: 03015 and above (3D) · LSI: 0.3mm pitch and above · Others: odd-shape components
Measurable range35mm (15µm)
Inspection speed450ms / FOV
Service & Support (NETA Trading)
US distributorNETA Trading LLC · Lake Bluff, IL
Installation & trainingOn-site installation, commissioning, and operator training
Live demoLake Bluff, IL · Remote demo available — subject to current equipment availability in the demo center.

Configuration and specifications subject to change — contact us to confirm for your line.

Where Cube fits in your SMT line

The Cube Series operates as pre-reflow AOI (after the mounter) and post-reflow AOI (after the reflow oven) — providing full inspection coverage in a typical SMT line.

Pre-reflow AOI

Placed right after the mounter, Cube catches missing, misaligned, and wrong-polarity components before reflow — so defects are corrected while rework is still cheap.

Post-reflow AOI

After the reflow oven, full 3D measurement verifies solder-joint quality, coplanarity, and lifted leads — the final gate before boards leave the line.

Black boards & black components

Multiple positioning methods and adaptive parameters let Cube reliably inspect low-contrast black-on-black boards that defeat conventional 2D AOI.

SMT & Mini LED

Up to 35mm 3D range and high-resolution optics handle everything from dense Mini-LED arrays to tall connectors and odd-form components on one platform.

3D AOI questions

What is the difference between 2D and 3D AOI?

2D AOI evaluates a flat color image of the board. 3D AOI adds height measurement: the Cube Series uses four-way projection to build a 3D profile of each component and solder joint. That lets it measure lifted leads, floating components and coplanarity, inspect tall parts up to 35mm, and handle low-contrast black-on-black boards.

Should AOI be placed before or after reflow?

Both positions have a purpose. Pre-reflow AOI, right after the mounter, catches missing, shifted and wrong-polarity components while rework is still simple. Post-reflow AOI, after the oven, verifies solder joints, coplanarity and lifted leads before boards leave the line. The Cube Series can be used in either position.

What is the difference between AOI and SPI?

SPI (solder paste inspection) checks the solder paste deposits right after printing, before any components are placed. AOI checks component placement and, after reflow, the solder joints. Many lines use both: SPI after the printer, AOI after the mounter or the oven. For SPI, see the Magic-ray Icon Series 3D SPI.

Can I see the Cube Series running before I buy?

Yes. NETA Trading offers live demos at its demo center in Lake Bluff, IL, and remote demos, subject to current equipment availability. Installation, commissioning and operator training are done on site.
